WP Mail SMTP Test Email Failed? Diagnose It Without Guesswork

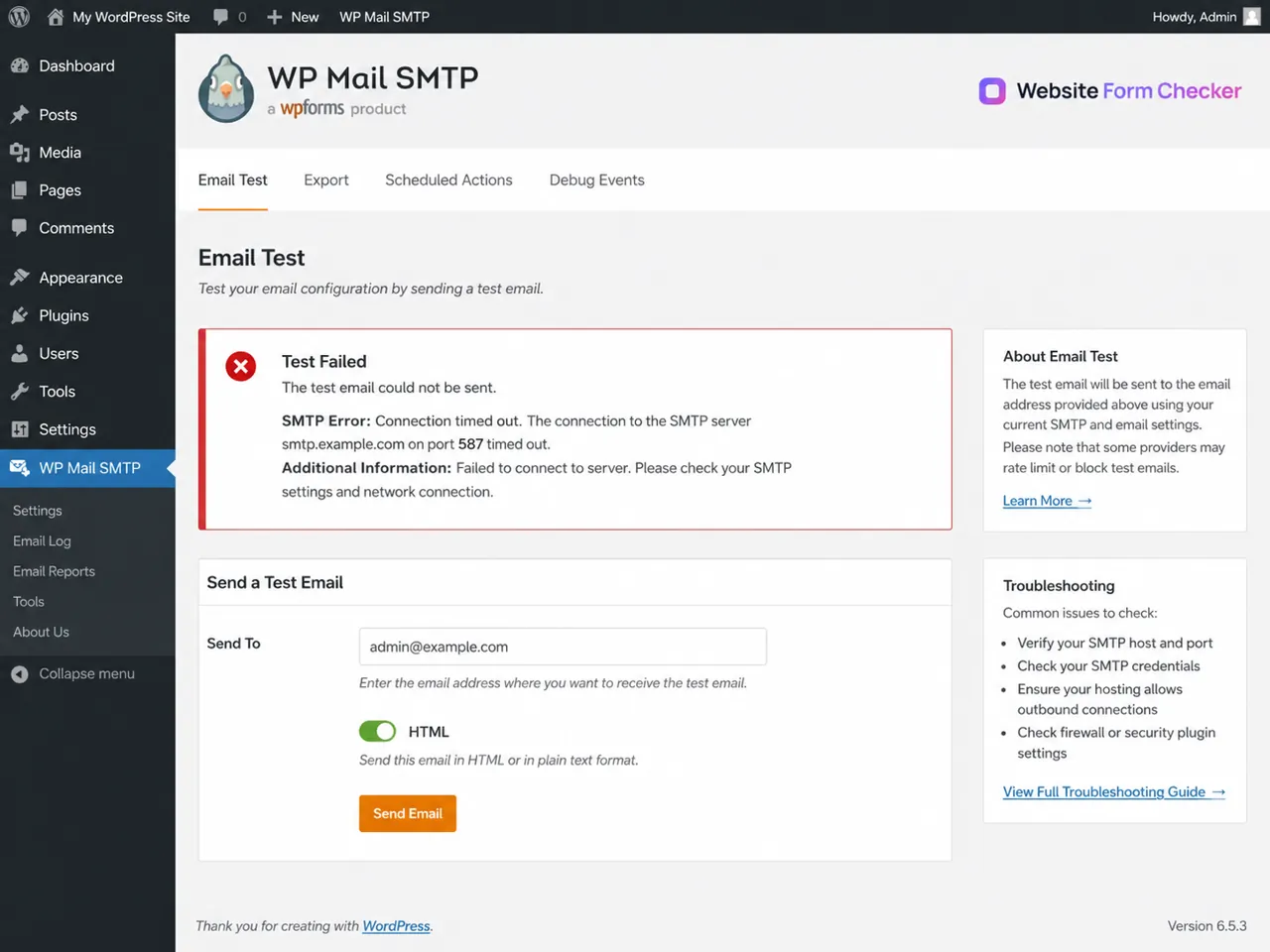

Start with the test screen, not the whole site

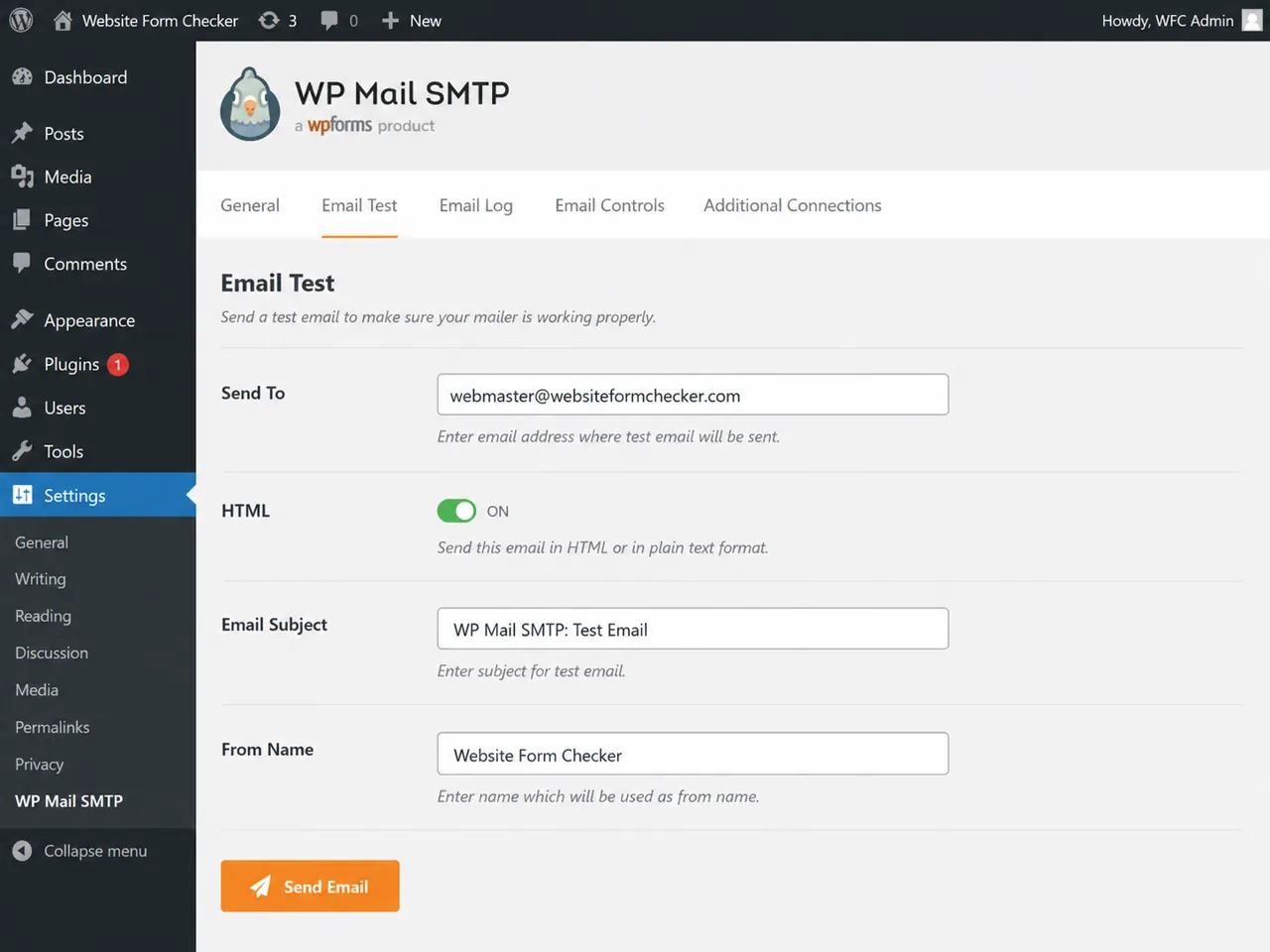

The Email Test tool is the cleanest place to begin because it removes extra variables from contact forms, WooCommerce emails, membership plugins, and custom notifications. Go to WP Mail SMTP > Tools > Email Test, and send the message to an inbox you can actually access.

Before pressing Send Email, check three simple things:

• The Send To address is typed correctly and belongs to an inbox you can open.
• HTML is left on unless you are specifically testing plain-text delivery.
• The Email Subject is easy to search for later, such as WP Mail SMTP: Test Email.

Do not test against a group inbox, forwarding address, or client inbox first. Use a mailbox you control, then repeat the same test with the real recipient after the setup works.

Read the error before changing settings

A failed result does not always mean the plugin is broken. It usually means the plugin tried to send mail and one part of the path rejected or blocked the attempt. The exact wording matters.

For example, a connection timeout points in a different direction than an authentication error. A timeout usually suggests the server could not reach the mail host or port. An authentication error usually suggests the SMTP Username, password, encryption, or app password is wrong. A relay error often means the From Email or authenticated user does not match what the mail provider allows.

Copy the error message into your notes before you edit anything. If the next test produces a different error, that change is a clue.

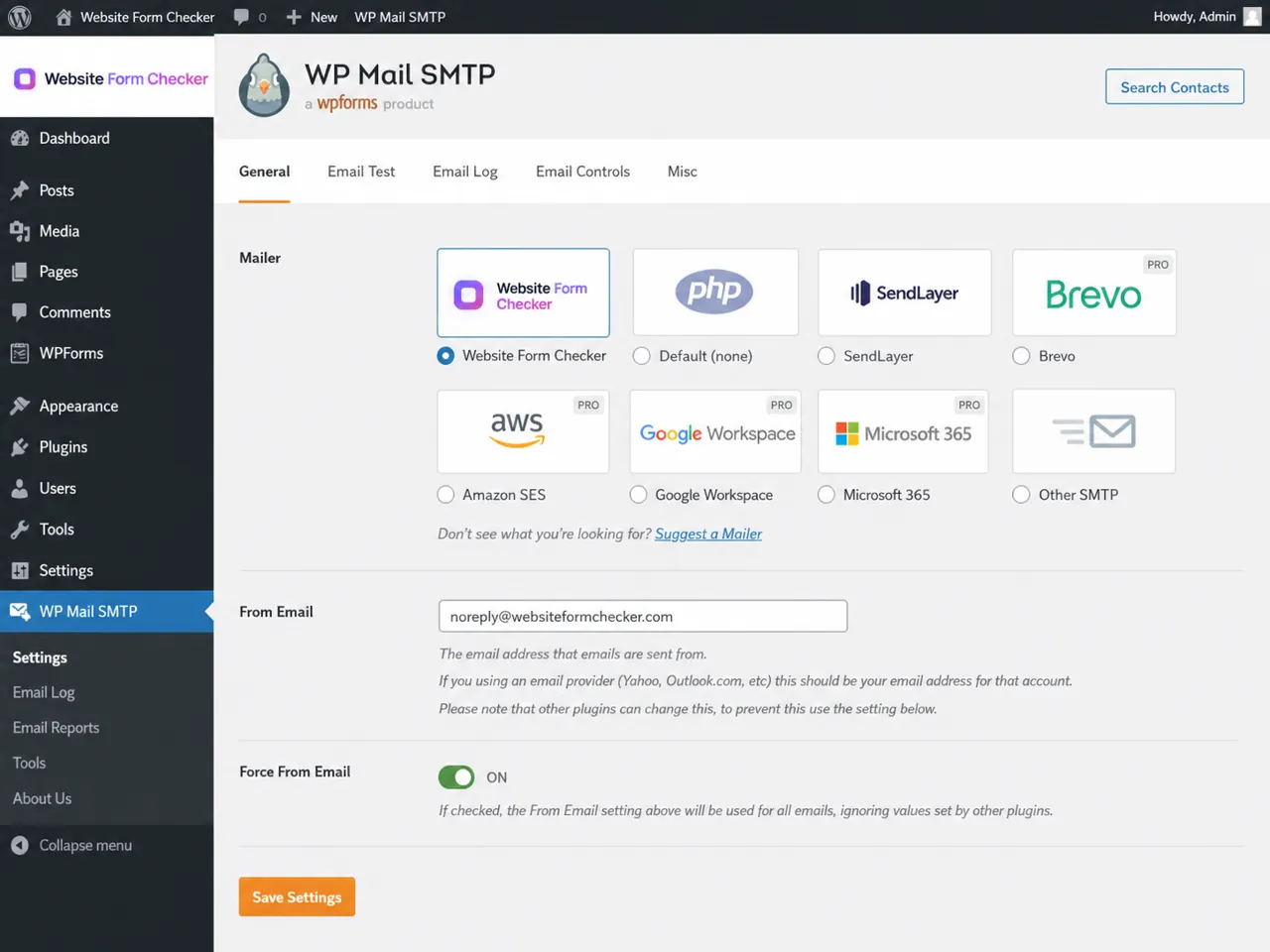

Check the mailer and From Email first

Next, open the main WP Mail SMTP Settings. Confirm the selected mailer and the From Email before digging into deeper SMTP details. A wrong From Email can make the rest of the setup look broken even when the SMTP account itself is fine.

Use this order:

1. Confirm that the selected mailer is the one you intend to use.
2. Use a From Email on the same domain or mailbox that your mailer expects.
3. Enable Force From Email if other plugins are allowed to overwrite the sender address.
4. Save settings before running the next test.

This is especially important when a WordPress site sends different types of emails from different plugins. A form plugin, ecommerce plugin, or membership plugin can set its own sender address. If that address conflicts with the authenticated SMTP account, the mailer may reject the message.

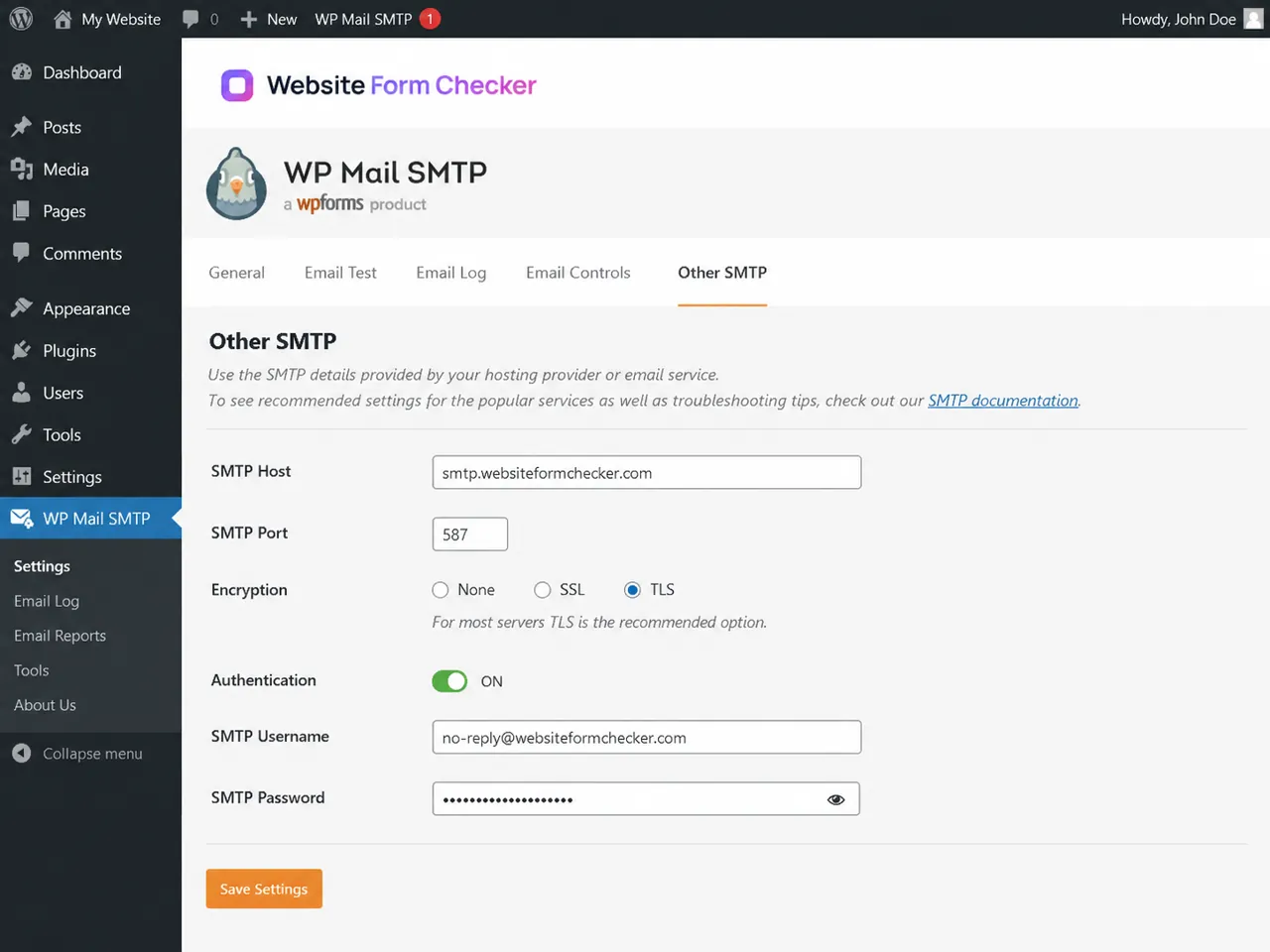

If you use Other SMTP, verify every field

If the site uses the Other SMTP option, one character can break the entire test. Do not rely on memory. Open the SMTP provider's instructions and compare each field one by one.

Check these fields carefully:

• SMTP Host: use the exact host from the provider, such as smtp.example.com or the host supplied by the mail service.
• SMTP Port: common ports are 587 for TLS, 465 for SSL, and sometimes 25 or 2525 depending on the provider.
• Encryption: match the port. If the provider says STARTTLS or TLS, do not choose SSL.
• Authentication: leave it enabled when the provider requires a username and password.
• SMTP Username: this is often the full email address, not just the mailbox name.
• SMTP Password: use the correct mailbox password or app password, depending on the provider.

After correcting the settings, save them and run only one new test. If you change five things and the test still fails, you will not know which change helped or hurt.

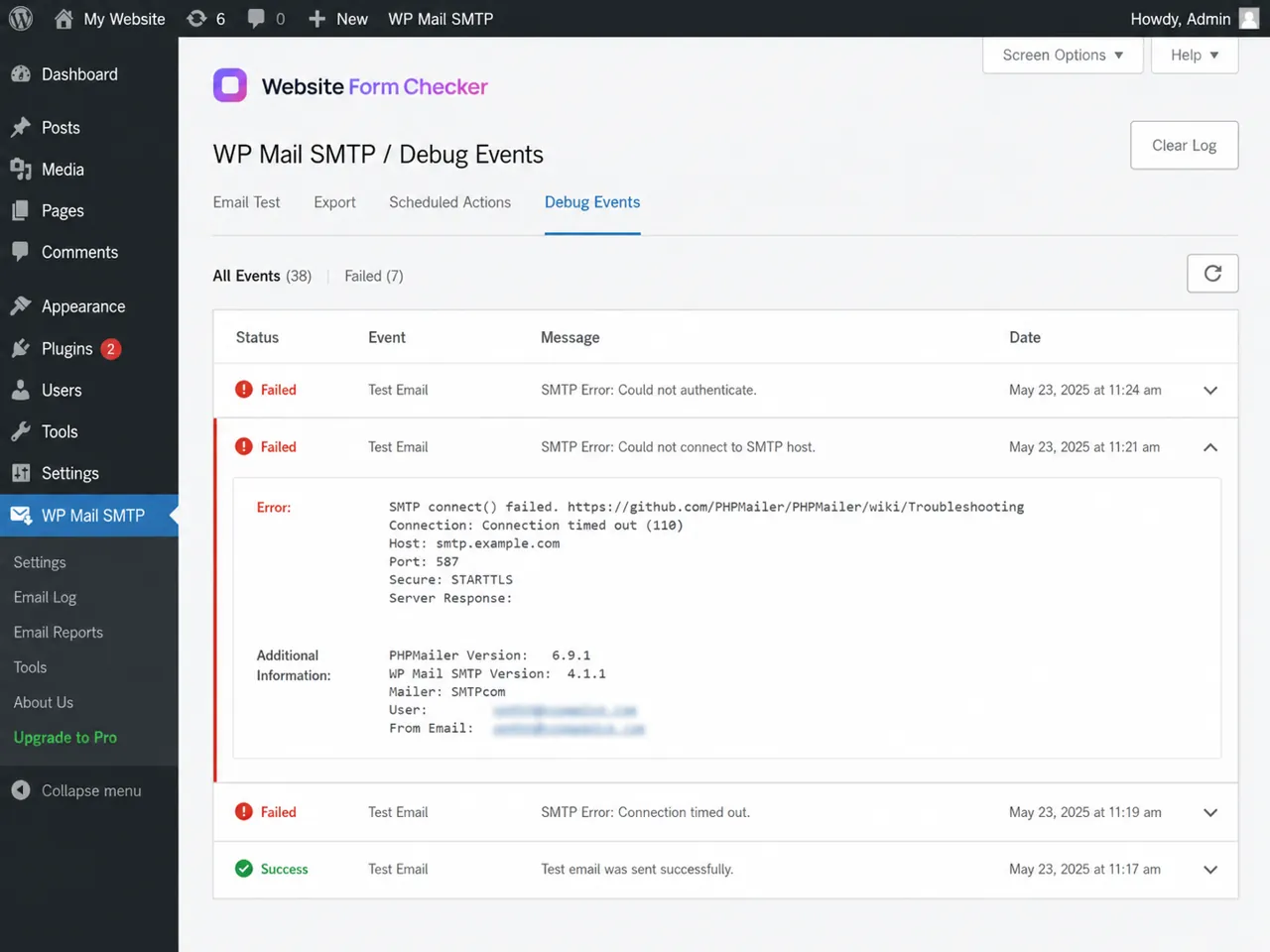

Use Debug Events to see what actually happened

If the visible test result is too short, open Debug Events. This area can show the error in a more technical format, including the host, port, encryption method, and the point where the connection stopped.

Debug Events are useful when the WP Mail SMTP test email failed message is vague. Look for details such as:

• Connection timed out
• Could not authenticate
• Could not connect to SMTP host
• Unable to relay
• Certificate or encryption mismatch
• DNS or domain verification warnings

The goal is not to decode every technical line. The goal is to identify which part of the email path failed so you can avoid random fixes.

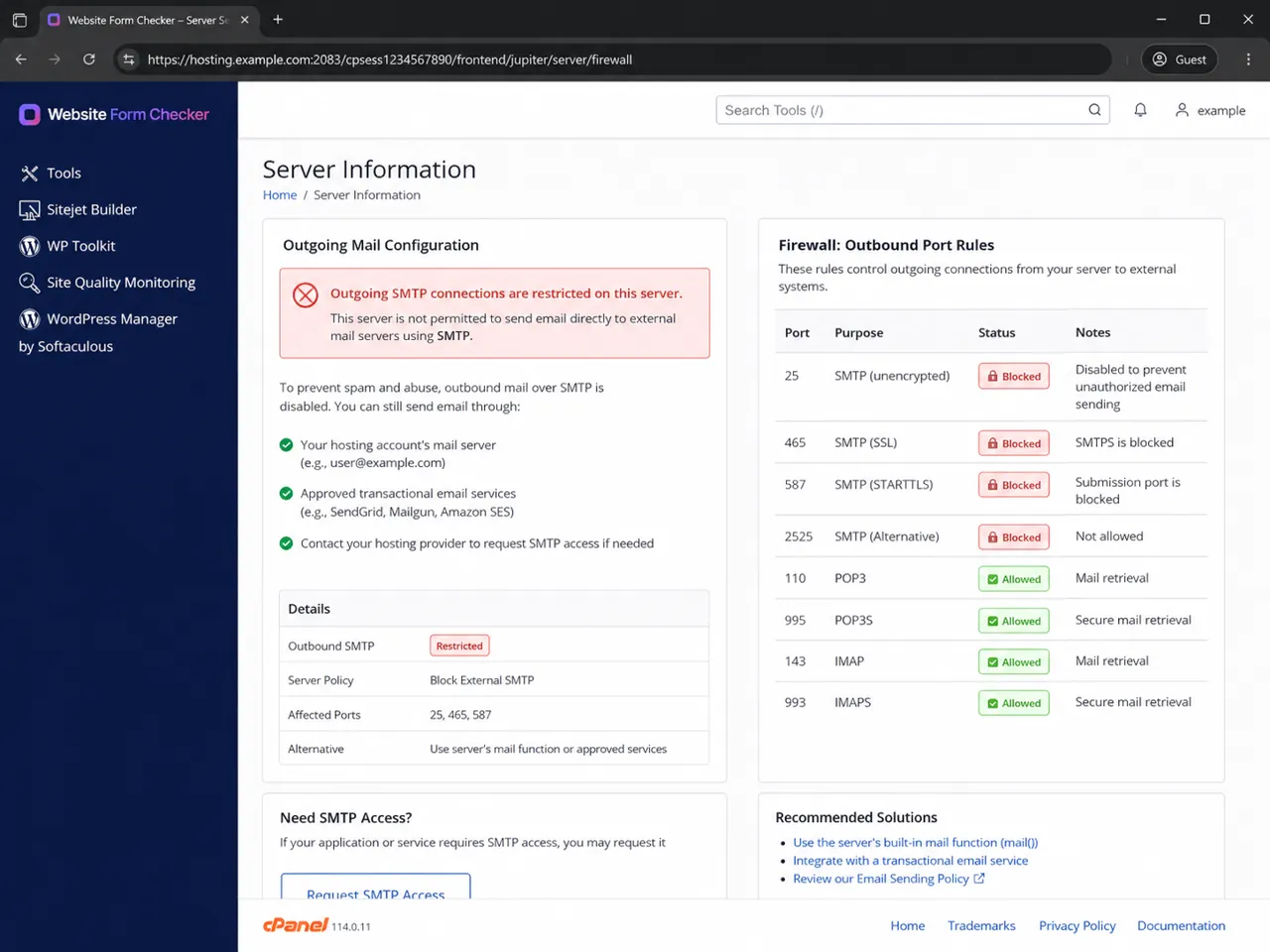

Check whether hosting is blocking SMTP

Sometimes the WordPress settings are correct, but the hosting environment blocks outgoing SMTP connections. This is common on shared hosting, locked-down managed hosting, or servers with strict anti-spam policies.

If you see connection timeouts on port 587, 465, 25, or 2525, check your hosting panel or ask the hosting provider whether outbound SMTP is allowed. A host-level restriction can make every plugin test fail until the port is opened or a supported mailer is used.

When hosting blocks direct SMTP, use one of these paths instead:

• Use the host's approved mail relay or built-in email service.
• Switch to a transactional mail provider supported by WP Mail SMTP.
• Ask the host to allow the required outbound port for your account.
• Use an API-based mailer when available instead of a raw SMTP connection.

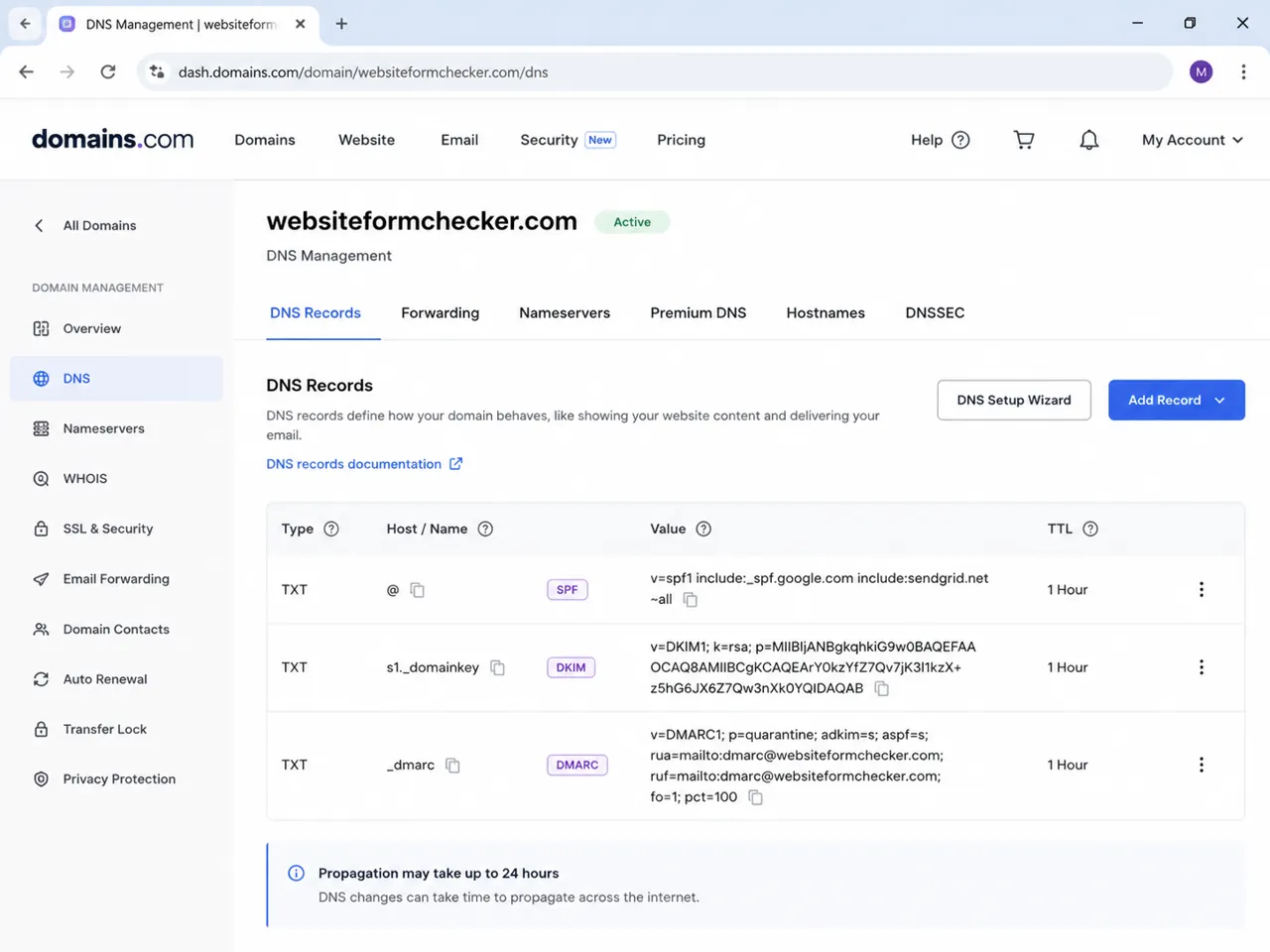

Confirm SPF, DKIM, and DMARC before calling it fixed

A successful connection is only part of the fix. If the message is accepted by the mailer but lands in spam or disappears after sending, check the domain authentication records. SPF, DKIM, and DMARC help receiving mailboxes decide whether the message is legitimate.

In DNS, verify that the sending domain has the records required by the mailer. Make sure the values are copied exactly, with no missing quotes, extra spaces, or duplicate records that conflict with each other. DNS changes can take time to propagate, so allow time before testing repeatedly.

This step matters most when the From Email uses your own domain, such as [email protected], [email protected], or [email protected]. If the records are wrong, the test may send successfully but still fail the inbox check.

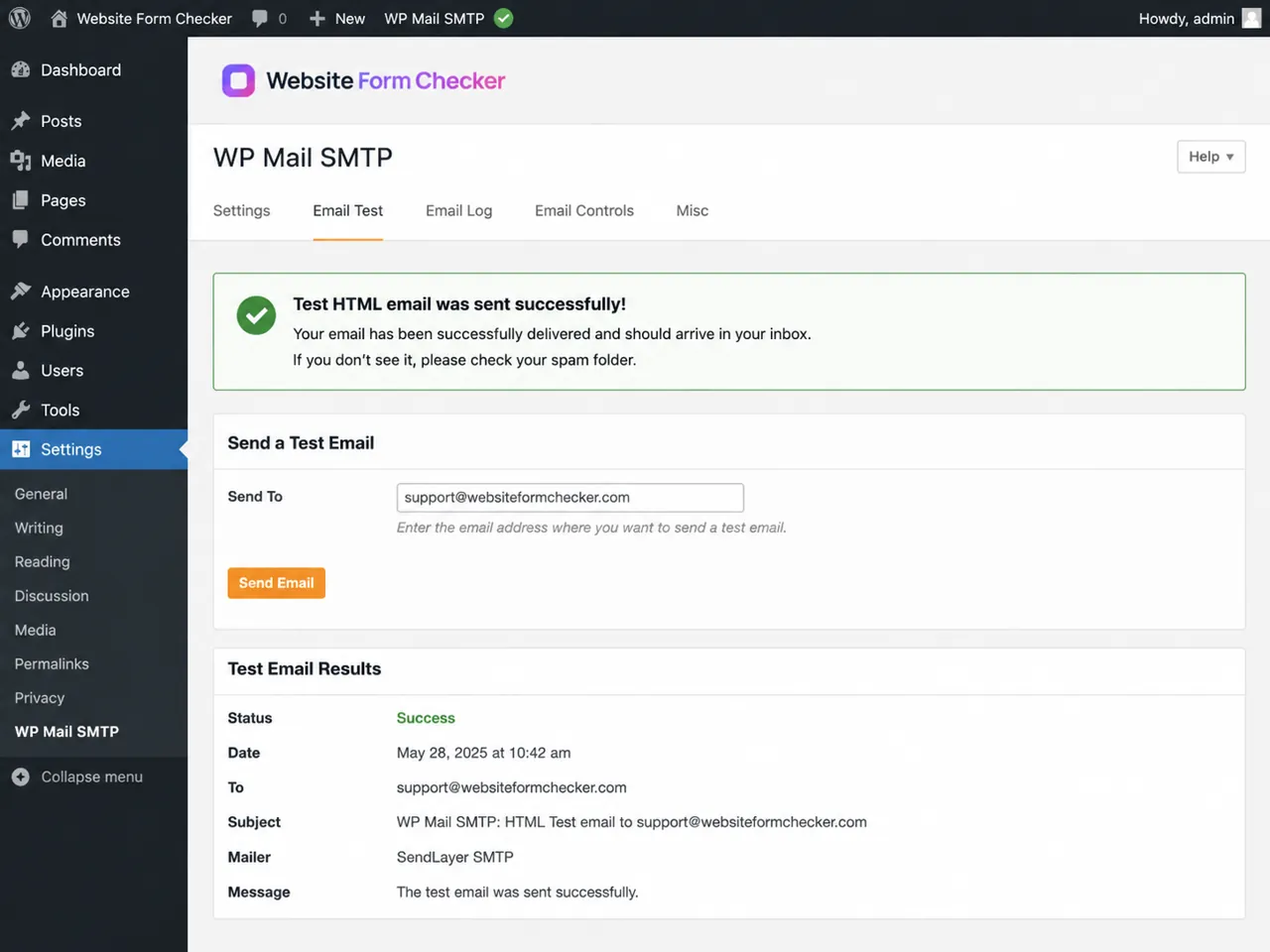

Run a clean success test

Once settings, hosting, and DNS look correct, send another test email. A clean success result confirms that WP Mail SMTP can hand the message to the selected mailer.

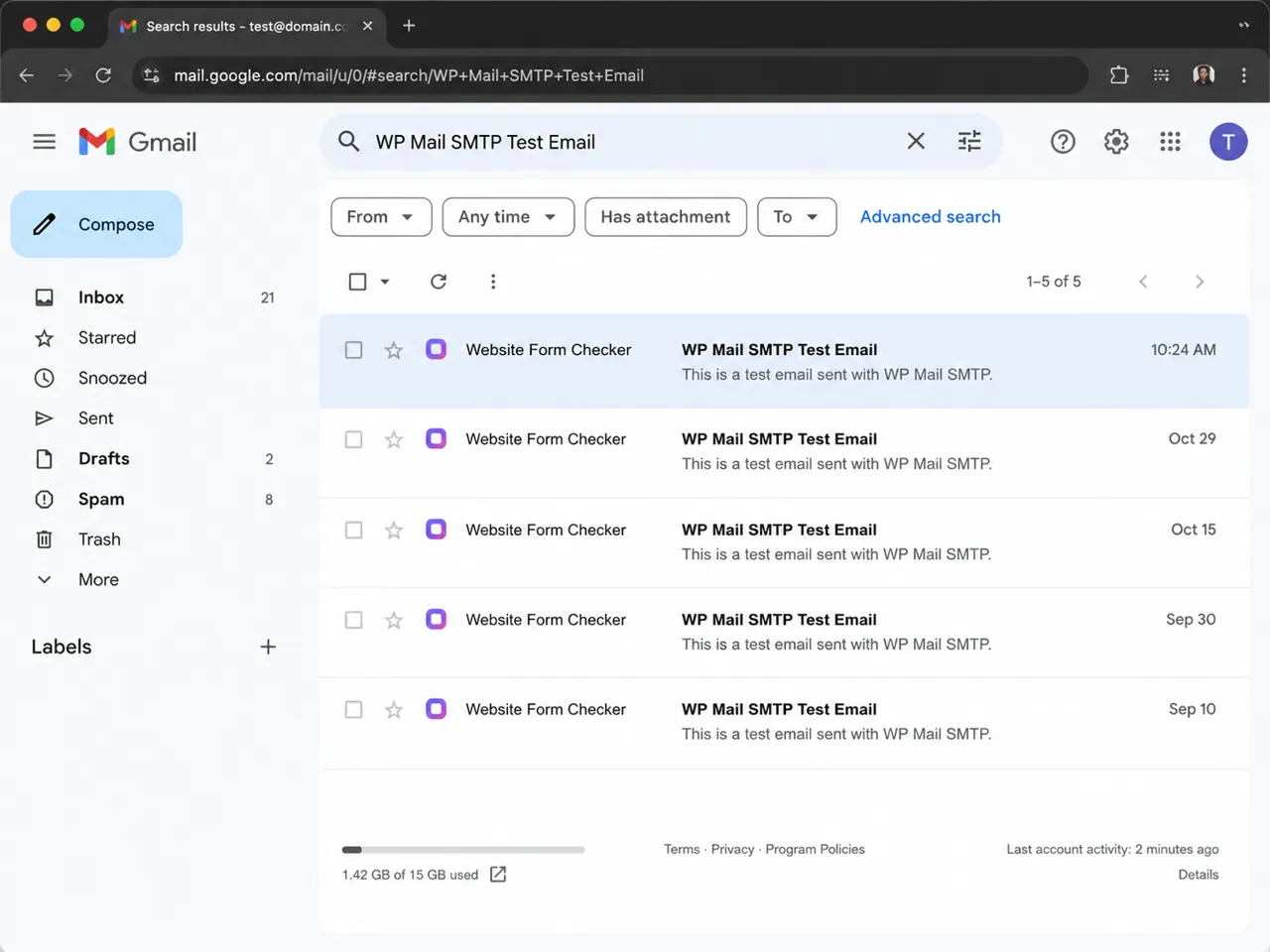

After the success message appears, do not stop there. Open the recipient mailbox and search for the exact subject. This proves that the message did not only leave WordPress; it also reached the receiving inbox.

If the inbox search does not show the message, check spam, promotions, quarantine, and any security filters. The plugin can report success when the mailer accepts the message, even if the recipient mailbox later filters it away from the main inbox.

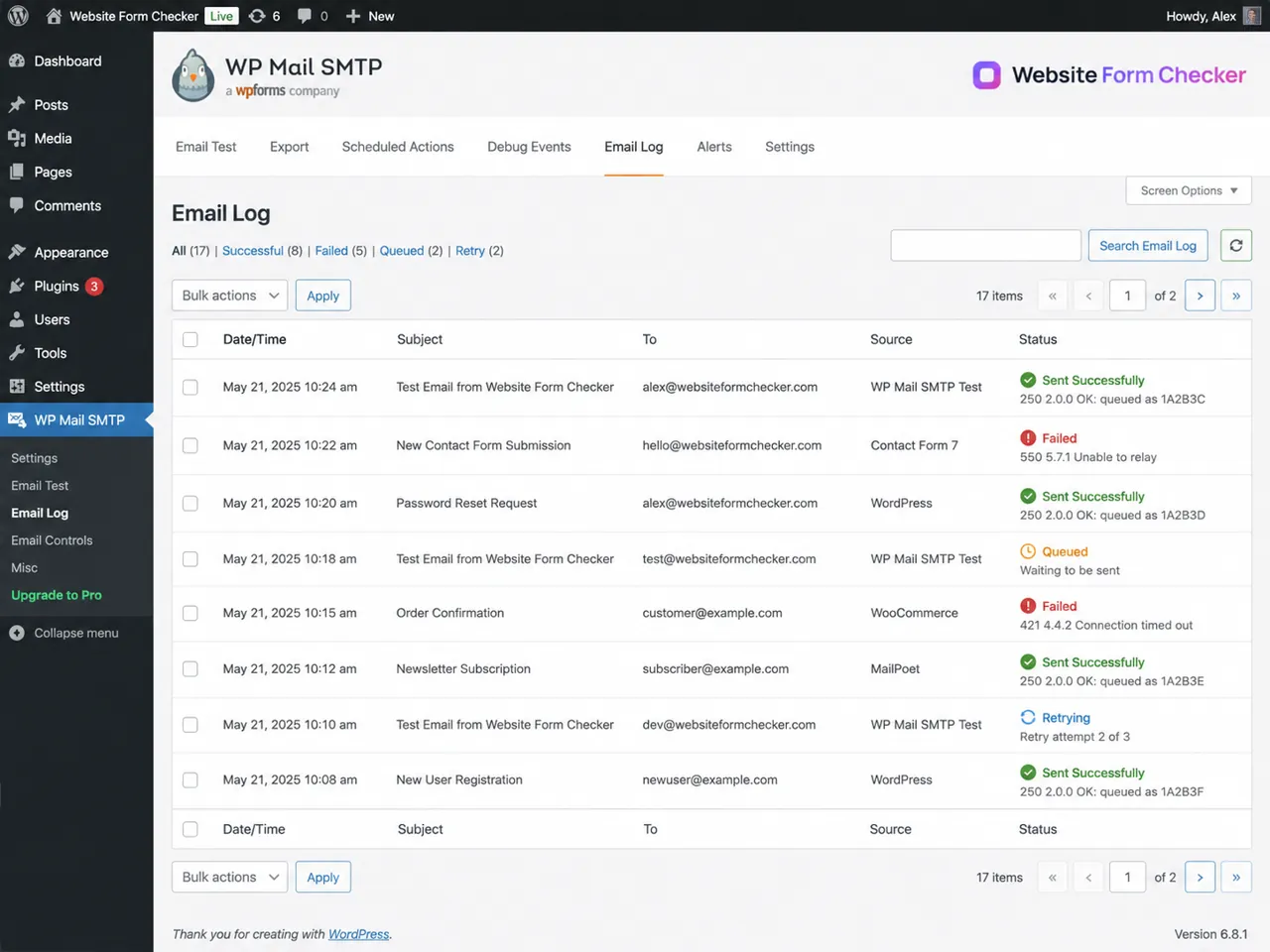

Use the email log to prove the fix held

One successful test is good. A short log history is better. The Email Log helps show whether failures stopped after a specific correction and whether later emails are still being accepted.

Look for a pattern rather than a single row. For example:

• Repeated failed rows before the SMTP host or port was fixed.
• Queued rows when the mailer accepted the message but delayed delivery.
• Retrying rows when the provider temporarily rejected the send attempt.
• Successful rows after the correct mailer, DNS, or hosting change was applied.

This is also useful when you need to explain the issue to a client. Instead of saying the email problem is fixed, you can show the failed attempt, the corrected test, and the successful delivery status.

Common WP Mail SMTP test failures and what they usually mean

When the test works but site emails still fail

A working SMTP test does not automatically fix every notification on the site. It confirms the mailer can send. If contact form emails, order emails, password resets, or admin alerts still fail, move from the SMTP layer to the plugin that creates the message.

Check the sending plugin for:

• The recipient address used for notifications.
• A sender address that conflicts with the WP Mail SMTP From Email.
• A Reply-To value that uses the visitor's email address instead of a safe site address.
• Conditional routing rules that send the message to the wrong person.
• Spam protection, CAPTCHA, or security rules that block the submission before email is created.

The easiest way to separate these problems is to send one WP Mail SMTP test email, then submit one real form or trigger one real site email. Compare both entries in the log. If the SMTP test succeeds and the form email fails, troubleshoot the form notification settings next.
